Koel Ghosh Koel is a Ph.D. student at Penn State University in the Agricultural Economics and Rural Sociology Department.

Link to poster presented at Clean Energy Expo , April 2-3, 2004, State College, PA




Koel Ghosh, James S. Shortle, and Carl Hershner *

Agricultural Economics and Rural Sociology, Pennsylvania State University
* Center for Coastal Resources Management, Virginia Institute of Marine Science

Hampton RoadsNatural ecosystems like forests and wetlands provide valuable habitat and ecological services intimately linked with sustenance of life on earth. The survival of species depends on the availability of migration corridors and the existence or emergence of suitable habitats. Climate change will affect fundamental ecological processes and the spatial distribution of terrestrial and aquatic species.

A crucial issue in facilitating ecosystem adaptation to climate change is managing land use and landscapes to preserve migration corridors and potentially emergent habitats. This study determines optimal strategies for natural resource adaptation under climate change, using the Submerged Aquatic Vegetation (SAV) Restoration Program in the lower Chesapeake Bay as a case study.


Submerged Aquatic Vegetation: The diverse assembly of underwater grasses found in the shallow water of the Chesapeake bay are called Submerged Aquatic Vegetation (SAV). SAV provides important habitat for the fish and shellfish population of the bay and contributes to improving water quality by removing excess nutrients. But SAV can be overwhelmed by nutrients. The increased nutrient and sediment input from development in the surrounding watershed resulted in a dramatic bay wide decline in all SAV species in the late 1960's and 1970's. Compared to historical estimates of 200,000 acres, a 1984 aerial survey of the bay documented only 38,000 acres—prompting a SAV restoration plan that would ensure the future of SAV in the Chesapeake Bay.


Fig. 1: Eelgrass ( Zostera marina ) dominates the lower Chesapeake Bay. Fig. 2: The blue crab, symbolic of the life and culture in the Chesapeake Bay region, uses the bay grass beds as nursery area.

Climate Change and SAV restoration: The distribution of SAV is influenced by salinity, temperature, light penetration, water depth, water wave and current actions, and bottom sediment. Climate change can affect any of these conditions, either by itself or by interacting with other environmental stressors. This study looks at the impact of climate-induced sea-level rise on SAV distribution and restoration opportunities. Sea level rise will alter the water depth at current SAV sites. Existing SAV will migrate from the deeper waters to the shallower waters near the shore. As the sea moves inland, current tidal marshes on the coast may become suitable as SAV growing sites. There is incomplete information regarding both the magnitude and the likelihood of sea-level rise. These uncertainties must be reflected in the methodological framework.

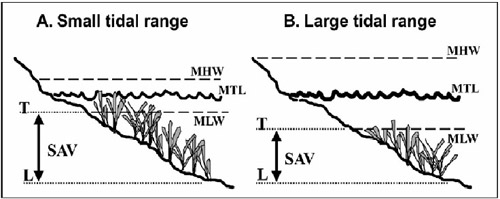

MHW:Mean High Water, MTL: Mean Tide Level, MLW: Mean Low Water
T: Low Tide, L: Light


Figure 3: The suitable water depth for SAV is below the low tide line (T) to about 2 meters in depth (L). The SAV fringe (arrow) decreases as the tidal range increases with sea-level rise. Source: Chesapeake Bay Program

Methodology Steps: 1. Understand the impact of sea-level rise on existing SAV and future SAV restoration opportunities. 2. Identify adaptation strategies for SAV restoration under climate change--strategies are a portfolio of choices regarding extent of restoration at current sites and future sites. 3. Account for uncertainty in future sea-level rise. This is done by considering alternative scenarios of sea-level rise that can occur in the neighborhood of that state occurring. 4. Account for the social cost of other land and water uses excluded by SAV restoration. 5. Bring it all together in a mathematical model. 6. Solve the model using Discrete Stochastic Programming (DSP).

Bathymetry & SAV

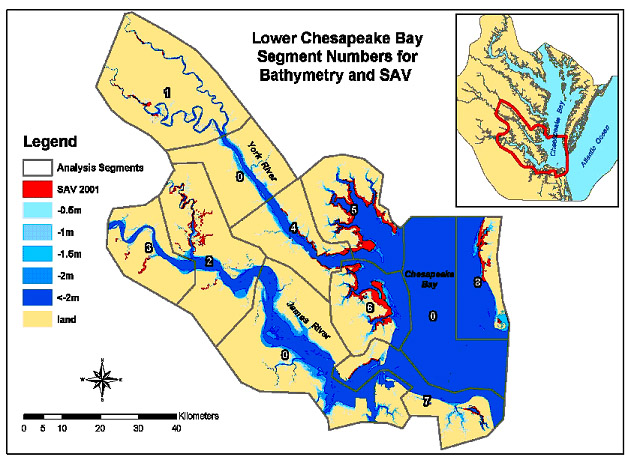

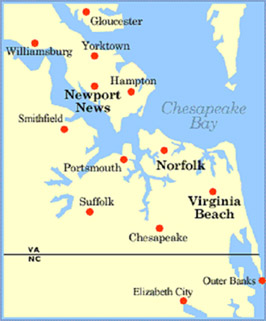

Figure 4: Hampton Roads in southeast Virginia. The right-hand map divides the region into segments for the study.


Data: Bathymetry maps points of equal water depth. Data was obtained by combining bathymetry information (from the Chesapeake Bay Program) with GIS data coverage of current and historic SAV, suitable shellfish aquaculture area, and tidal marsh inventory data (from Virginia Institute of Marine Science) in GIS software ArcInfo.

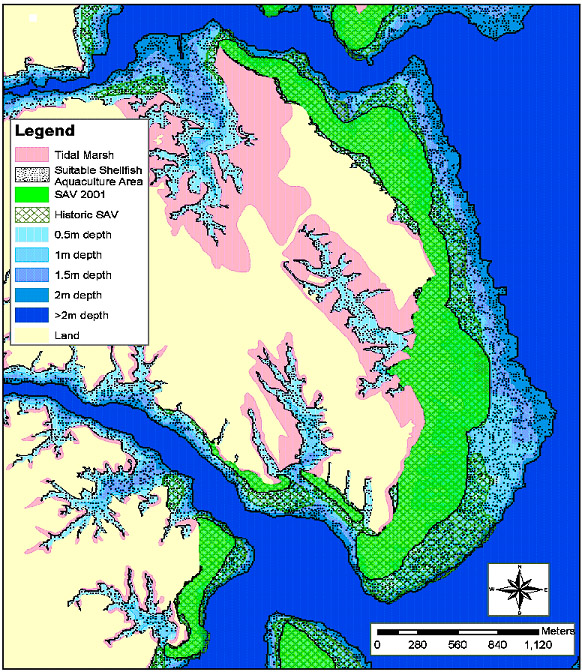

Fig. 5: The bathymetry bands and coverage area of existing SAV, historic SAV, tidal marshlands, and aquaculture suitable areas are shown for segment 6.

Usefulness of the Study : This methodological framework also can be used for research on the economics of planned ecosystem adaptation to climate change (in addition to SAV). The study is of practical value as it will aid Chesapeake Bay region planners in evaluating ecological restoration strategies and developing forward-looking land-use plans that enhance autonomous adaptability of marine ecosystems.

Acknowledgements :1. Support is provided by the Global Change Research Program, Office of Research and Development, U.S. Environmental Protection Agency (Cooperative Agreement R- 83053301). 2. Tamia Rudnicky at Virginia Institute of Marine Science helped organize the GIS data for the analysis. Penn State Logo
